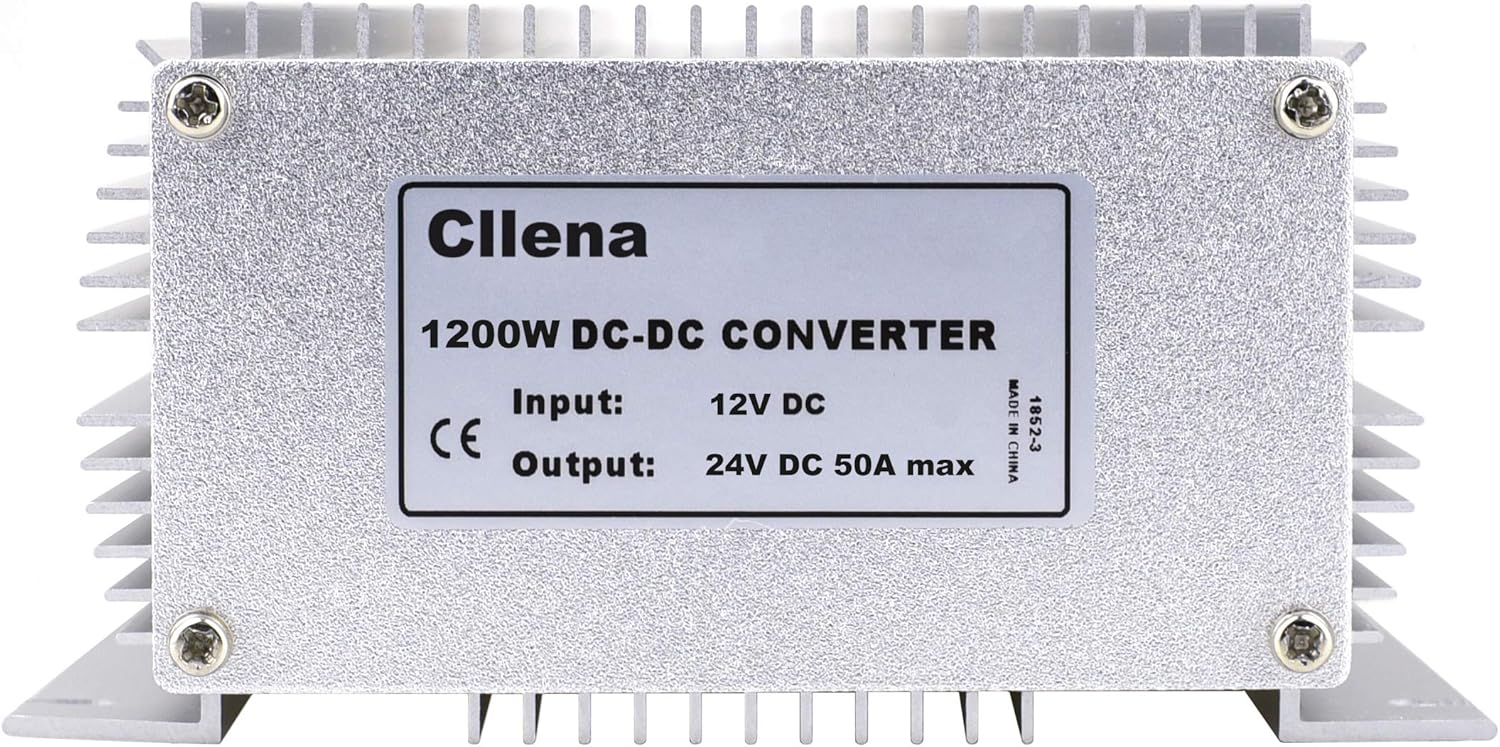

Cllena DC/DC 12V to 24V Boost Converter 50A 1200W Step Up Voltage Regulator Power Supply Voltage Transformer (Input 10V-16V)

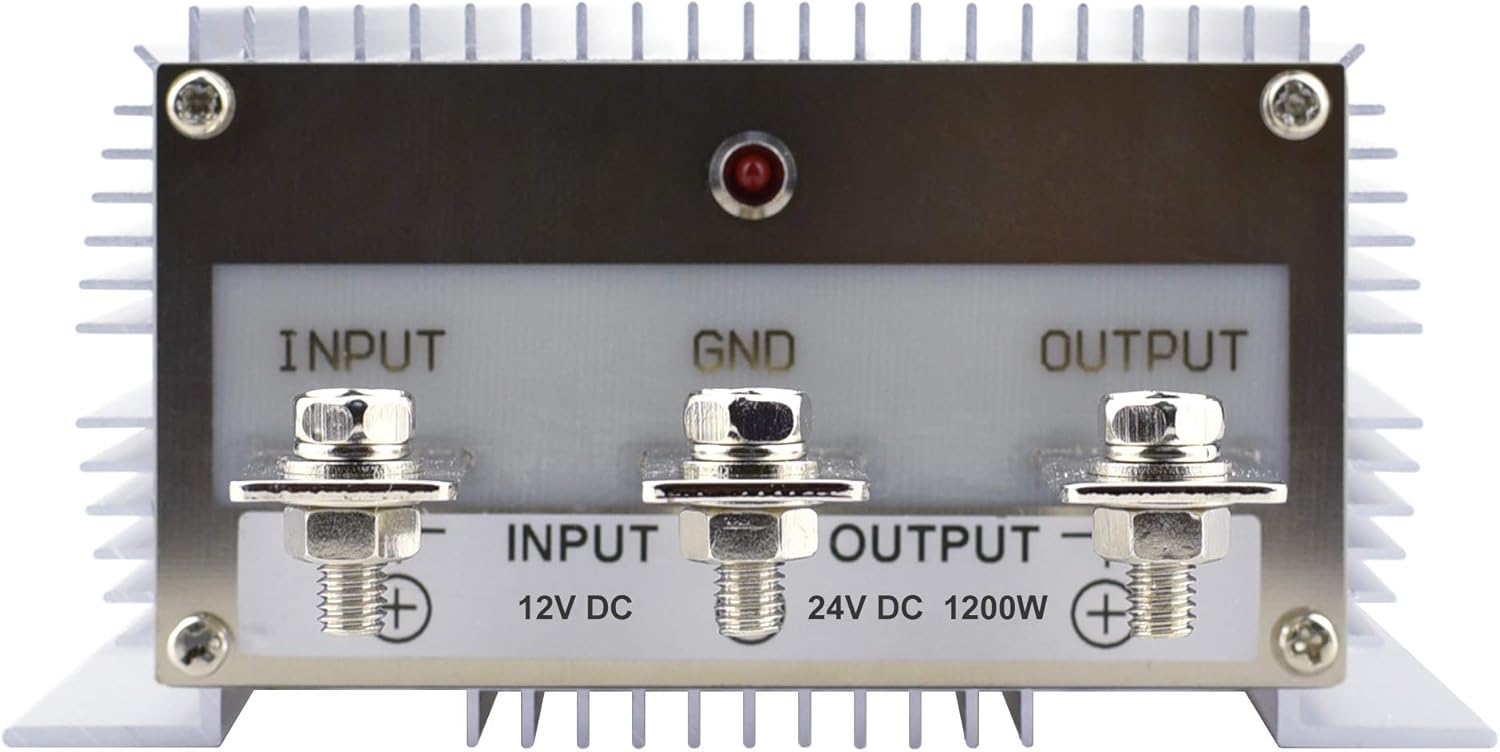

Wiring: INPUT+ to BAT+, GND to BAT-; OUTPUT+ to LOAD+, GND to LOAD- Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop. Application: 12V DC battery as input power to 24V DC appliances as output load. Specifications: Input Rated Voltage: 12V DC Input Voltage Range: 10V-16 DC Output voltage: 24V DC Output Current: 50 Amp Output Rated Power: 1200W Efficiency: 97% (half load); 95% (full load) Ripple: 200mVp Line Regulation: ±0.2% Load Regulation: ±0.2% Voltage Accuracy: ±1.5% Enclosures: IP68 Case Operating Temperature: -40~85°C Total Size: 220*127*63mm(L*W*H) Weight: 2200g Features: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours. Package included: 1 x DC 12V-24V 50A Step up Converter Questions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.

• Input voltage range: DC 10V-16V; Output voltage: DC 24V(non-adjustable); Output current: 50A (rated working current); Output power 1200W.
• High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40℃
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
• Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.
